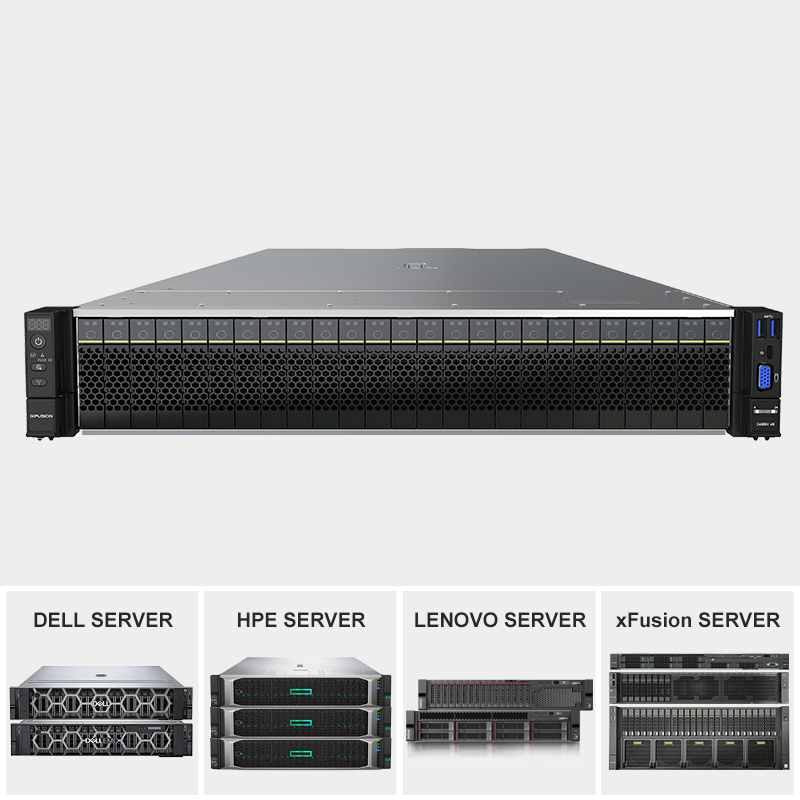

New xFusion Fusionserver 2488H V6 Servers 25x2.5 Inch Drive Xeon 2*5318H 900W PSU 2*32GB 2488H V6 2U 4-socket Rack Server

Enterprise Compute Node

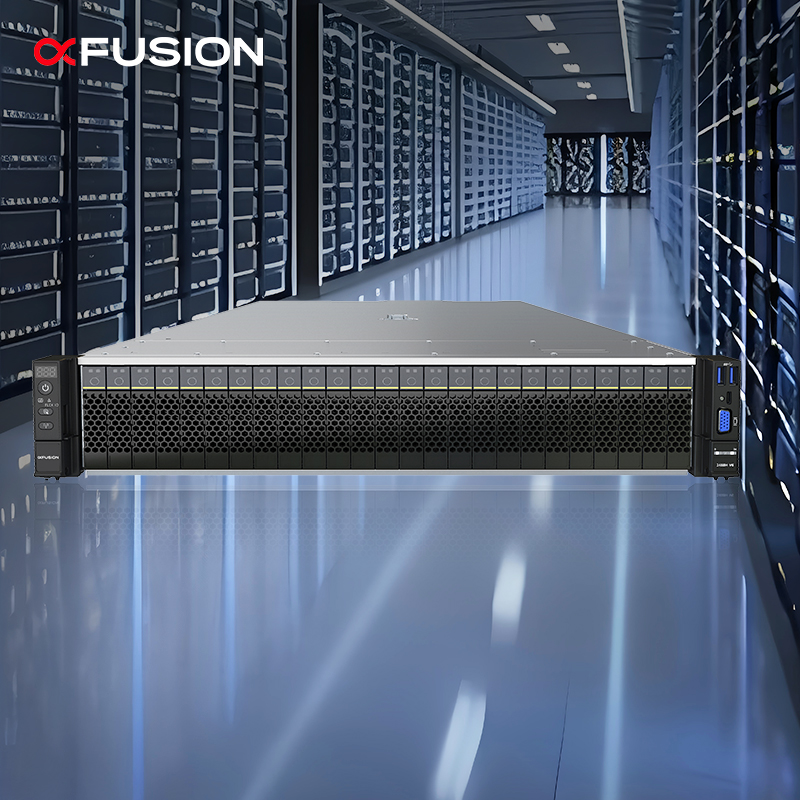

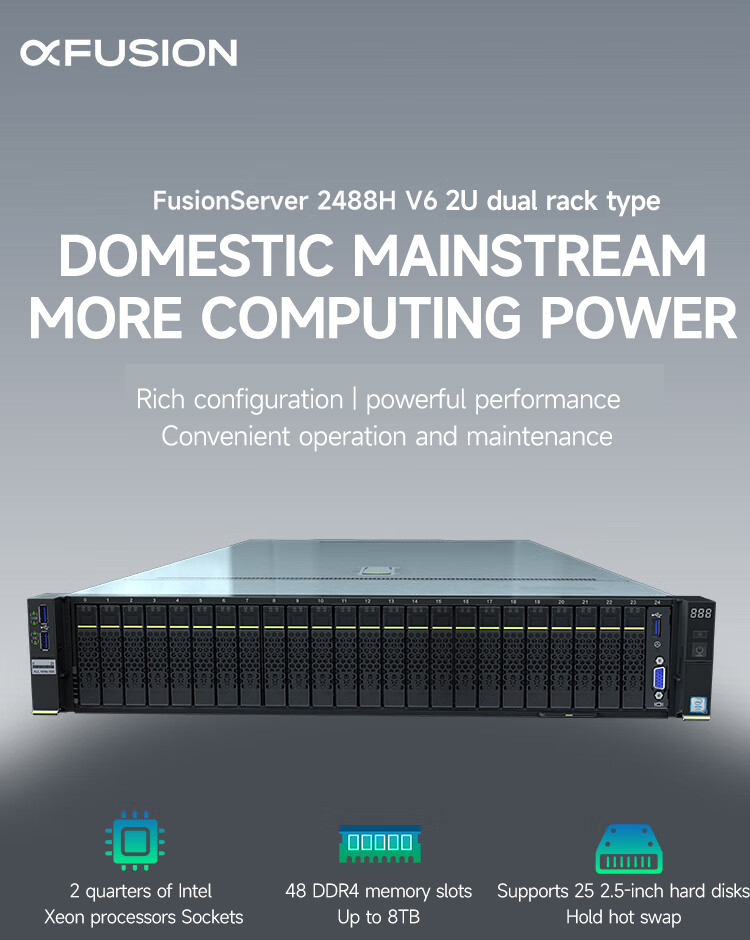

FusionServer 2488H V6 2U Rack Server

The FusionServer 2488H V6 is the latest 2U 4-socket rack server for cloud computing, virtualization, high-performance computing (HPC), databases, and SAP HANA and other computing-intensive scenarios. Compared with two 2U 2-socket rack servers, the 2488H V6 can save OPEX in virtualization scenarios. Built with 4 x 3rd Gen Intel® Xeon® Scalable processors, 48 DDR4 memory slots, 11 PCIe expansion slots, and up to 25 x 2.5" local storage drives in 2U of space. It integrates patented technologies such as DEMT (dynamic energy management technology) for intelligent power consumption management, FDM for intelligent fault management, and can be equipped with FusionDirector full life cycle management software to effectively reduce operating costs and increase return on investment.

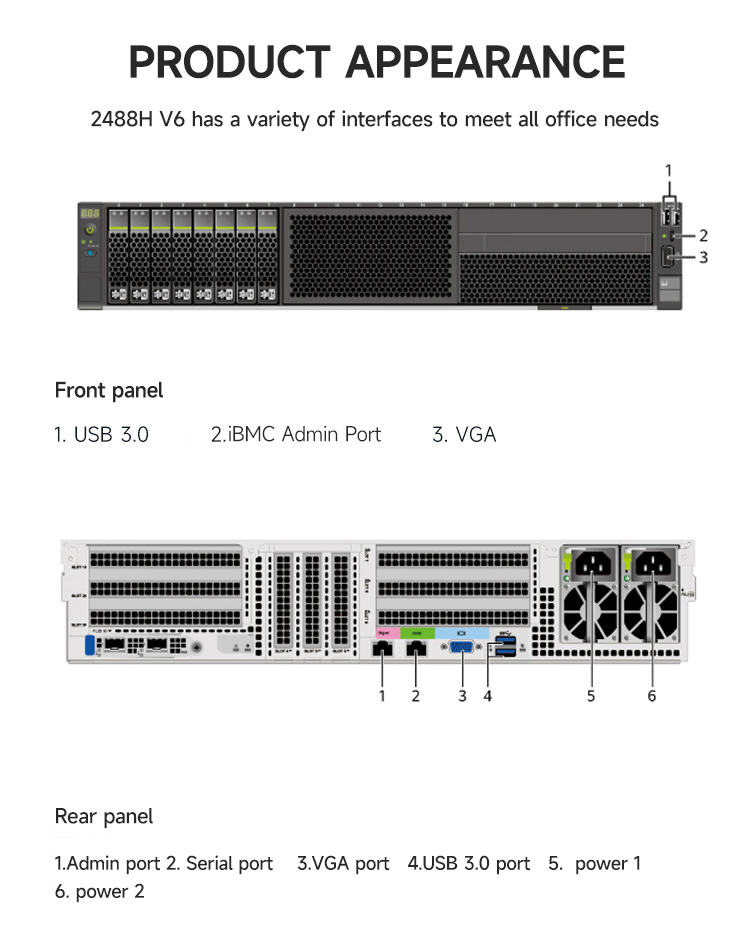

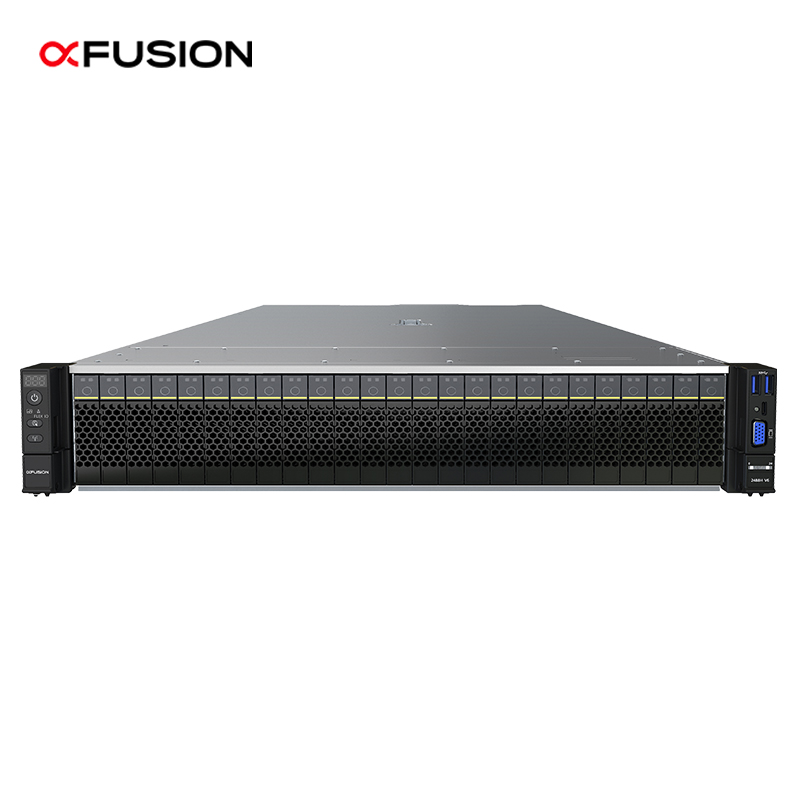

Product Display

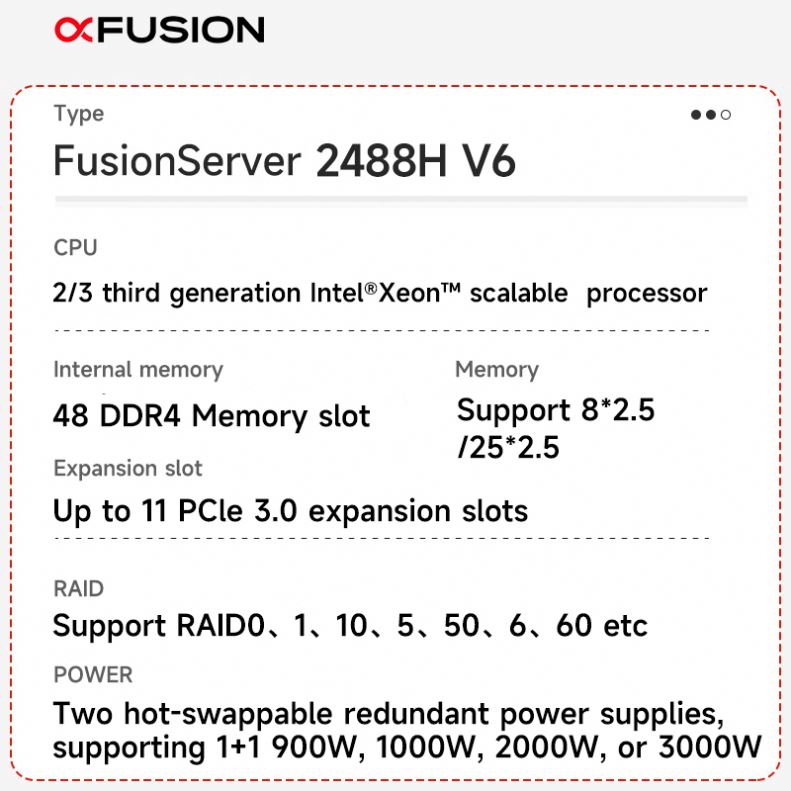

Product Parameters

Server Model	2488H V6
Form Factor	2U rack server
Processors	2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W

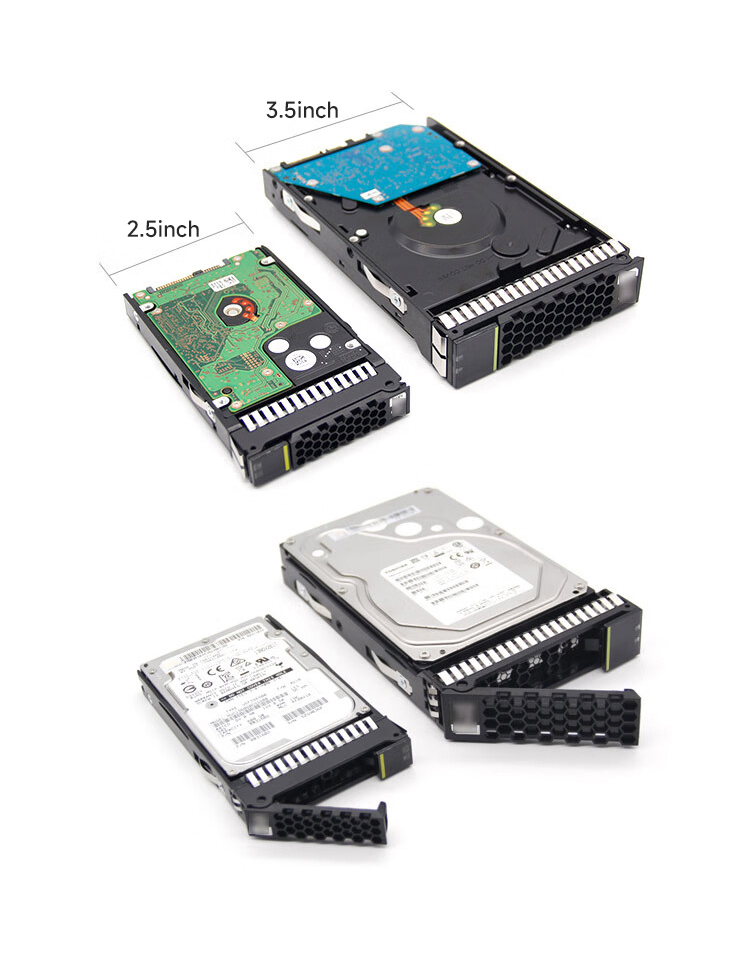

Local Storage	Supports hot-pluggable drives with the following configuration options: 8 x 2.5'' front SAS/SATA drives 24 x 2.5'' front SAS/SATA drives 25 x 2.5'' front SAS/SATA drives 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs 24 x 2.5'' front NVMe SSDs Flash storage: 2 M.2 SSDs

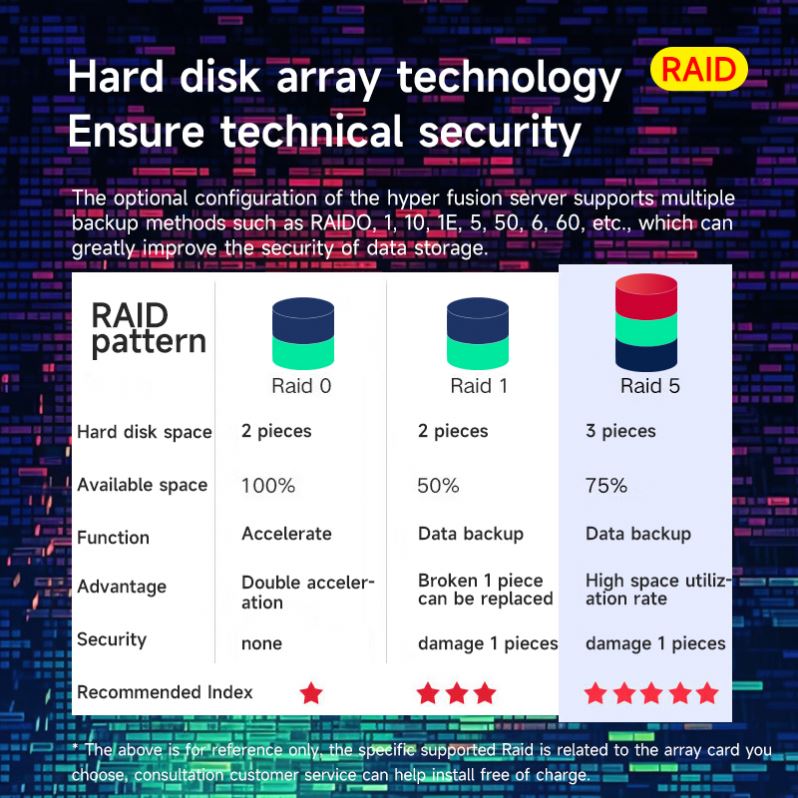

RAID Support	RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
LOM Network Port	1 x OCP 3.0 NIC (optional): 2 x GE/10GE/25GE/100GE ports, supporting hot swap, NC-SI, WOL, and PXE 1 Wi-Fi module (optional): allowing mobile terminals to connect to the iBMC in wireless mode
PCIe Extensions	Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
Management	iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. (Optional) Configured with FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management.
Operating System	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi.
Security	Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, etc.
Heterogeneous Accelerator	2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards. For details, please contact customer support.
Fan Modules	6 hot-swappable fan modules in N+1 redundancy mode
Dimensions	Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
Power Supply Units	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) / 2900 W (input: 220 V to 230 V AC) / 3000 W (input: 230 V to 240 V AC) 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) / 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) 1500 W HVDC PSUs (input: 260 V to 400 V AC) 2200 W DC PSUs (input: -38.4 V to -72 V DC) 1200 W DC PSUs (input: -38.4 V to -72 V DC)

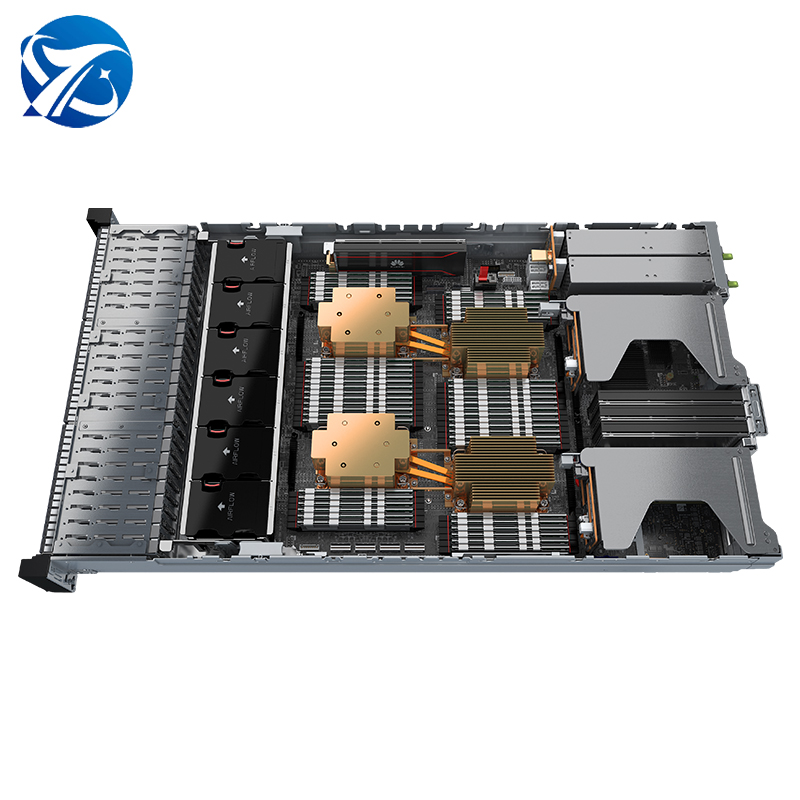

FusionServer Internal Architecture Detail

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions (FAQ)

Q When can I get the quotation?

We usually quote within 24 hours after receiving your inquiry. If you are in urgent need of pricing, please contact us via email or telephone, and we will prioritize your inquiry accordingly.

Q What kind of warranty do you offer on these products?

Our complete system products provide a 3-year replacement warranty. We maintain a reliable supply chain to quickly address and resolve any post-sales configuration issues.

Q Are the component modules original and tested?

Yes, all memory and internal components utilize original brand chips. We execute strict testing on every component and server system configuration before delivery to guarantee stability.

Q What is the Minimum Order Quantity (MOQ) for custom/OEM orders?

Different configurations and product types have different MOQs. Please share your exact technical requirements with us, and we will do our best to accommodate both large-scale configurations and smaller project orders.

Q What payment options are supported?

We accept bank transfers (T/T), credit cards, secure digital transfers, and standard trade-assurance payment channels to guarantee transaction security.

Q How do your prices compare to local distribution markets?

With extensive specialization in server hardware, we supply configurations at extremely competitive price points. While products may visually appear similar, internal chip configurations and specifications vary; we offer premium original components to secure reliable, long-term operation.
