Product Display

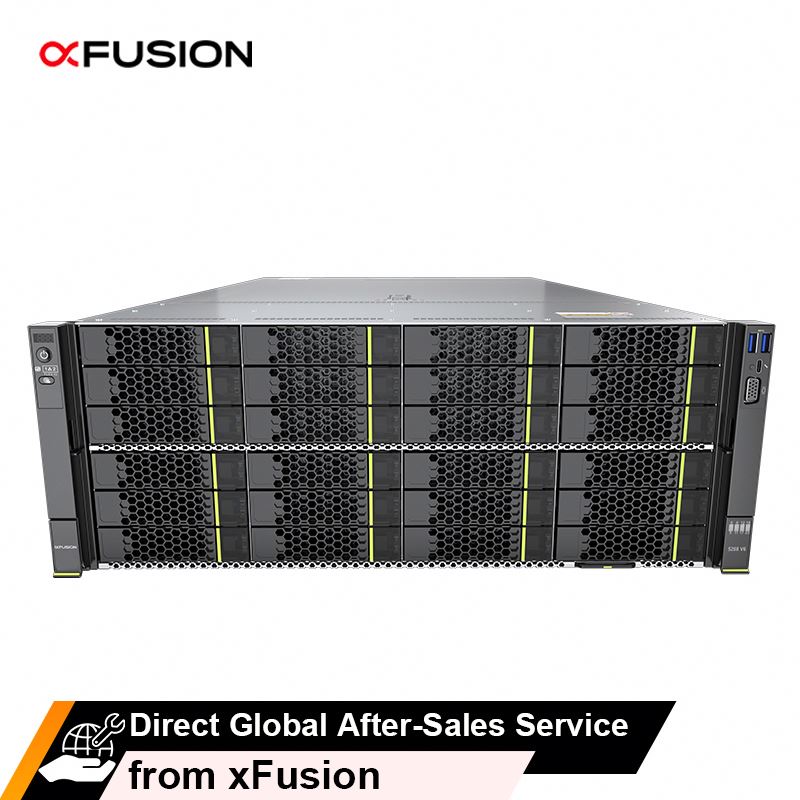

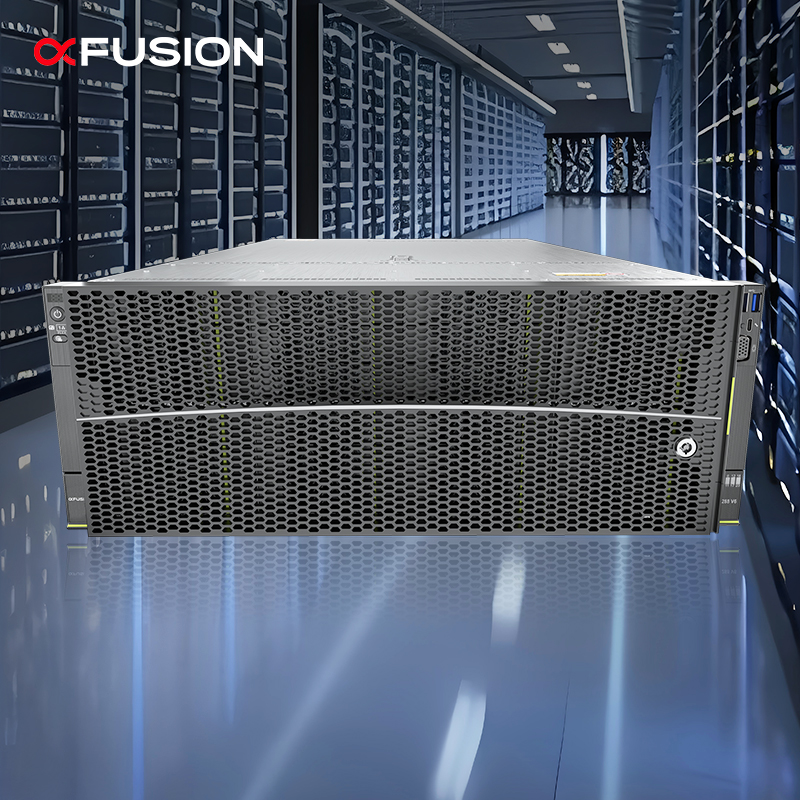

FusionServer 5288 V6 4U Rack Server

FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.

Powerful Compute

Supports 2 Intel Xeon scalable processors & 32 DDR4 DIMMs in a 4U space.

Intelligent Management

Patented DEMT power management & FDM fault management systems.

Massive Expansion

Accommodates up to 44 3.5-inch drives and 4 NVMe SSDs for tiered storage.

Product Description

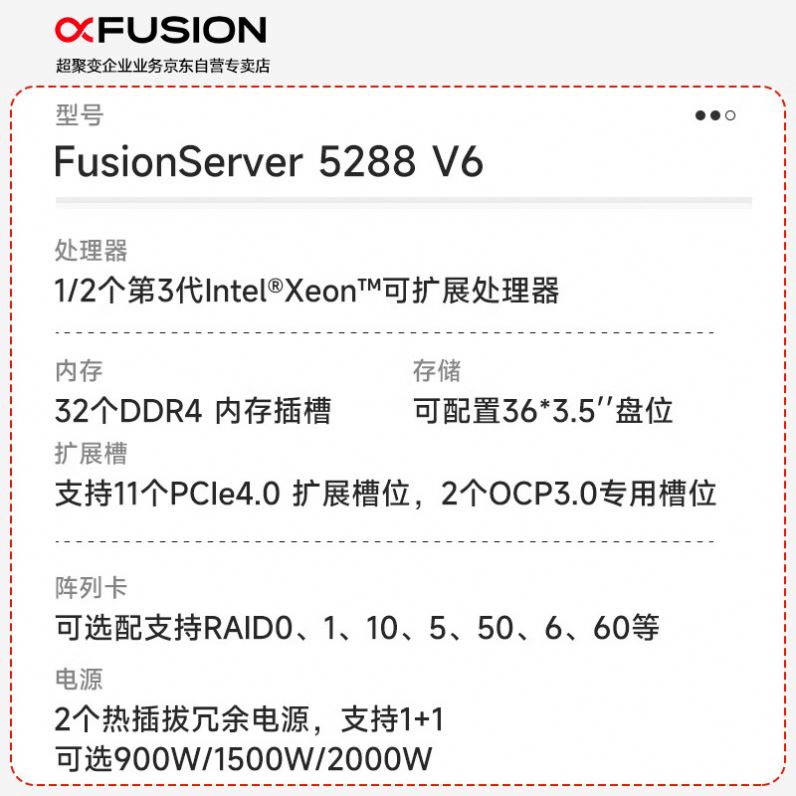

Product Parameters

Server Model	FusionServer 5288 V6
Form Factor	4U Rack Server
Processors	1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W
Local Storage	Various hard disk configurations are supported. The hard disks are hot swappable: 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs 24 x 3.5-inch SAS/SATA front hard disks 4 3.5-inch SAS/SATA internal hard disks 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe) Flash storage: Dual M.2 SSDs

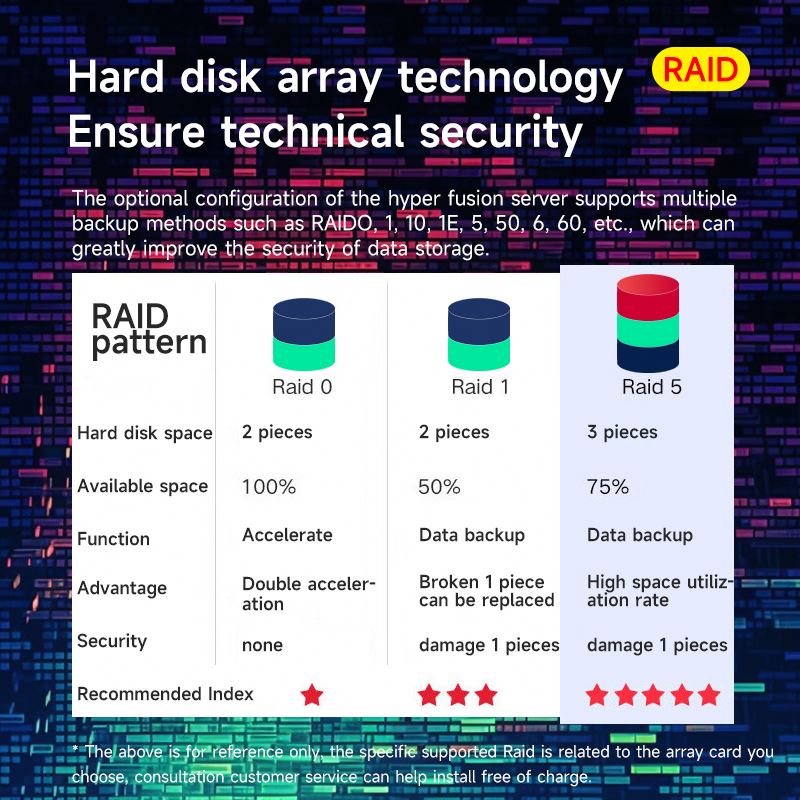

RAID support	Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities
Network	OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap
PCIe Expansion	A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots
Chip Set	Intel® C621A
Fan Modules	Four hot-swappable fans, supporting N+1 redundancy
Height X Width X Depth	Chassis dimensions: 175 mm x 447 mm x 790 mm
Power Supply Units	2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows: 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC) 1500 W AC Platinum PSU 1000 W (input: 100 V AC to 127 V AC) 1500 W (input: 200–240 V AC or 192–288 V DC) 2000 W AC Platinum PSU 1800 W (input: 200–220 V AC or 192–200 V DC) 2000 W (input: 220–240 V AC or 200–288 V DC)

Company Profile

As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners, we provide: Computing servers, Network storage, Network switches, CPU, RAM, HARD DRIVES, and other accessories.

Exhibition & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: When can I get the quotation?

We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone. We will give priority to your inquiry.

Q2: What is the warranty provided on the equipment?

Our whole machine product provides a 3-year replacement warranty. We have a complete supply chain to deal with after-sales problems efficiently.

Q3: How do you ensure the quality of memory modules and components?

All the memories are original brand chips, and we strictly test the memory before each delivery to ensure optimal stability and reliability.

Q4: Do you accept secure payment options?

Yes, we accept Alipay, credit card transfers, bank card transfers, T/T, and other options to address and eliminate your payment concerns.

Q5: What is the minimum order quantity (MOQ) for orders?

Different products have different MOQs. Let us know your requirements and we will try our best to accommodate your needs. Small orders are also popular.

Q6: How do your prices compare to local market prices?

We have specialized in this line for many years. We pay close attention to quality and believe that only premium quality supports long-term business. While external appearances may look similar, price differences stem from internal components and configurations, allowing us to offer varying performance tiers for different budget levels.

Product Detail
